The efficient ice resurfacer for arenas – for ice surfaces up to 19,375 ft2 - (1,800 m2).
carousel-img carousel-img carousel-img carousel-img carousel-img

Shira

The WM Shira is a guarantee of outstanding comfort for the driver, and boasts an entirely unobstructed view whether you’re driving cabin-free or with all-around glass. Three steps provide easy entry to the vehicle. All important information is clearly visible at a glance on the high-definition color display, and all the main functions are keyboard-controlled. At a simple press of a button the automatic mode begins all work operations in a pre-defined order.

The handy keypad control system, the clear overview of the info-display, and the automatic mode make this vehicle exceptionally user-friendly. Rapid access to the entire engine compartment makes maintenance quick and easy.

Outstanding ice quality, right up to the edges: The WM Shira is a partner you can count on for the professional resurfacing for ice rinks up to 19,375 ft2 - (1,800 m2).

The only ice resurfacer on the market with a Factory Certified Passanger Seat with safe entry and exit.

Modern design, the best of quality and ease of maintenance: resurfacing mobile ice rinks has never been so professional or so simple!

  • Certified passanger seat with safe entry and exit
  • Snow tank volume - 106 ft3 / compacted 130.7 ft3
  • Standard water tank volume - 264 USG
  • Standard water tank + snow tank connection volume - 528 USG
  • Blade width - 82-5/8" inches, 90-1/2 inches
  • Turning Radius - 181-1/8 inches
  • Field of operation - PRO / Heavy Duty
  • Powered by - Battery and AC Drive Motors

    • Options:

  • Large water tank volume - 356.6 USG
  • Large water tank + snow tank connection volume - 620.8 USG

The warranty on a product that is delivered shall have a duration of 12 months from the delivery date, it being understood that this shall be the date on which the product is made available to the Customer in the Company’s plant.

  • 1 YEAR STANDARD WARRANTY
  • 3 YEAR EXTENDED WARRANTY AVALIBLE

    • 3 Year Warranty Logo

  • 5 YEAR EXTENDED WARRANTY AVALIBLE

    • 5 Year Warranty Logo

With the purchase of a WM technics GmbH ice resurfacer, the equipment will be delivered to your facility by one of are factory trained technicians. Our technicians are thoroughly trained in machine setup and operation. We will perform the following:

  • Unload ice resurfacer
  • Perform setup and field testing
  • Operational demonstration
  • Training class for staff

info

PRODUCT INFORMATION
settings

WM SHIRA OPTIONS
videocam

WATCH VIDEO

Additional Features

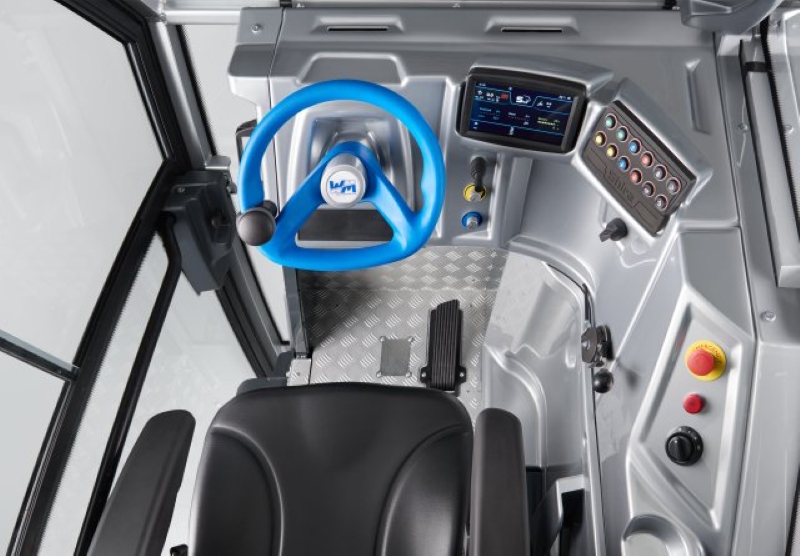

Everything Under Control

The WM Shira is a guarantee of outstanding comfort for the driver and boasts a full, unobstructed view whether you're driving cabin-free or with all-around windows. A step provides easy entry to the vehicle, where all important information is clearly visible at a glance on the high-definition color display, and all the main functions are keyboard-controlled. Simply press the A/M button, and the automatic mode begins all work operations in a pre-defined order.

  • Unobstructed view.
  • Keyboard-controlled.
  • Operations in a pre-defined order.

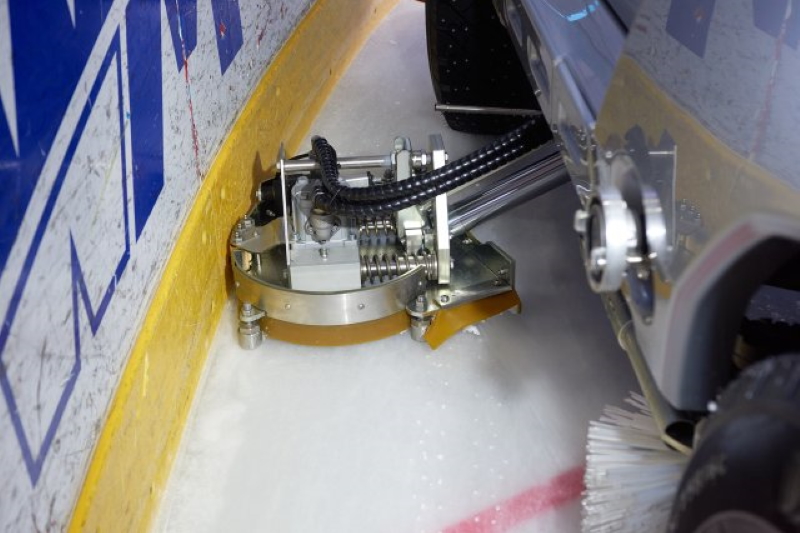

Integrated Ice Edger

The edger is fixed to the body of the WM Shira, guaranteeing you outstanding stability and performance. It can be operated easily and safely from the driver's seat. The innovative horizontal spring-loaded system with guide wheel ensures that the edger follows the contours of the rink to perfection, and edges the ice evenly, rapidly and cleanly. Edging and subsequent cleaning of the ice surface with the swivel brushes can be carried out in one simple step. The edgers are positioned between the axels and in front of the brush, to ensure an unrestricted overview of the vehicle. When not in use, the edgers are stored between the wheels, and do not affect operation in any way.

  • Outstanding stability.
  • Horizontal spring-loaded system.
  • Consistently high ice quality

Watch video

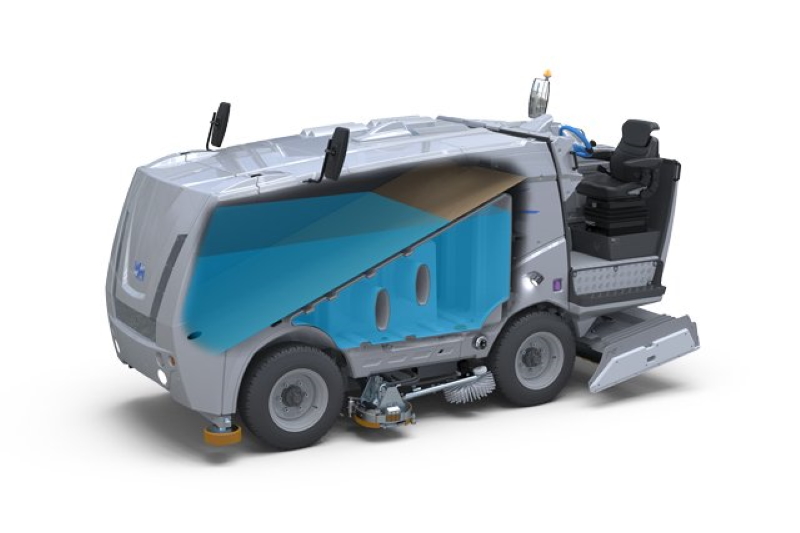

Ice Building -

Need More Water

When you're building up ice depth or using the water sprayer, more water is a must. The WM Shira has it all taken care of! The water and snow tanks can easily be connected into one water tank with a total volume of around 528 gallons of water. No more standing in cold water and tiresome tugging on hoses: All operations can be carried out from the comfort of the driver's cab - there's more than enough water to do the job.

  • Standard water + snow tank 528 gallons.
  • Optional Large water + snow tank 621 gallons.
  • Quick change over time.

Watch video

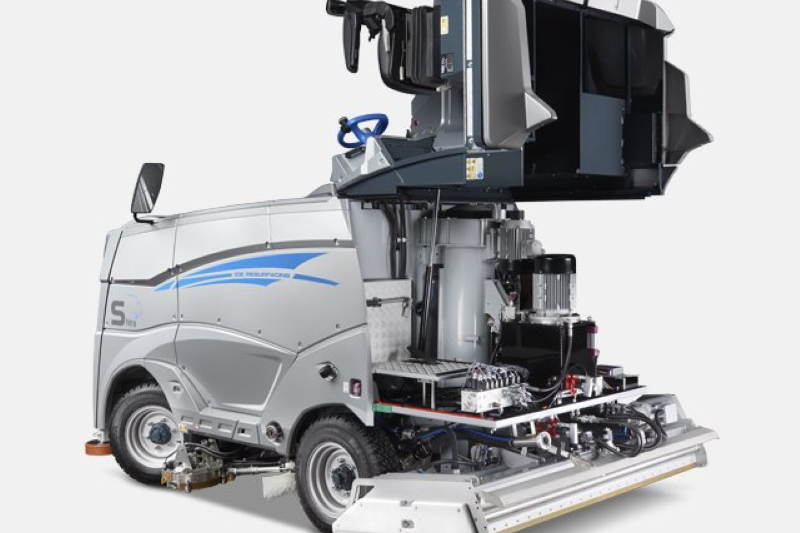

Ease of Maintenance

The entire engine technology is easily accessible just by lifting the cab. This means that mechanics can carry out their work quickly and cleanly, which in turn saves on time and service costs. Our team also use remote monitoring to keep an eye on your vehicle monitor and rectify any faults which may occur. Make the most of all the advantages of direct contact with the manufacturer!

  • Cost-efficient maintenance and operation.
  • Free and easy access to the engine compartment.
  • Skilled remote maintenance.


Spare Parts

avalible thru WORKspace

Just type in Your ice resurfacing machines serial number and then Your Login password.

... there You are in the Blueshop Spare Parts Management System, ready to:

  • Browse through a clickable 3-D-Explosion-model of your make and model.
  • Easily and intuitively click through the machine and quickly identify the required spare part or options.
  • Easily order or pre-order your items.
    • No risk of confusion
    • Always up to date
    • No loose ends!

    Watch video
